Overview
BCG-2004P is a cost-effect high performance L2+ Ethernet management switch - 20-port (100/1G) SFP+ 4-Port RJ45 combo are supported. This switch supports remote management by SNMP, Http and Telnet interfaces, and local management by console interface. BCG-2004P supports lots of L2 switch management functions, e.g. 802.1Q VLAN, 802.1x Security, Rate Control, Port Configuration, Port Mirroring, Port Statistics, QoS functions, ... etc.
Features

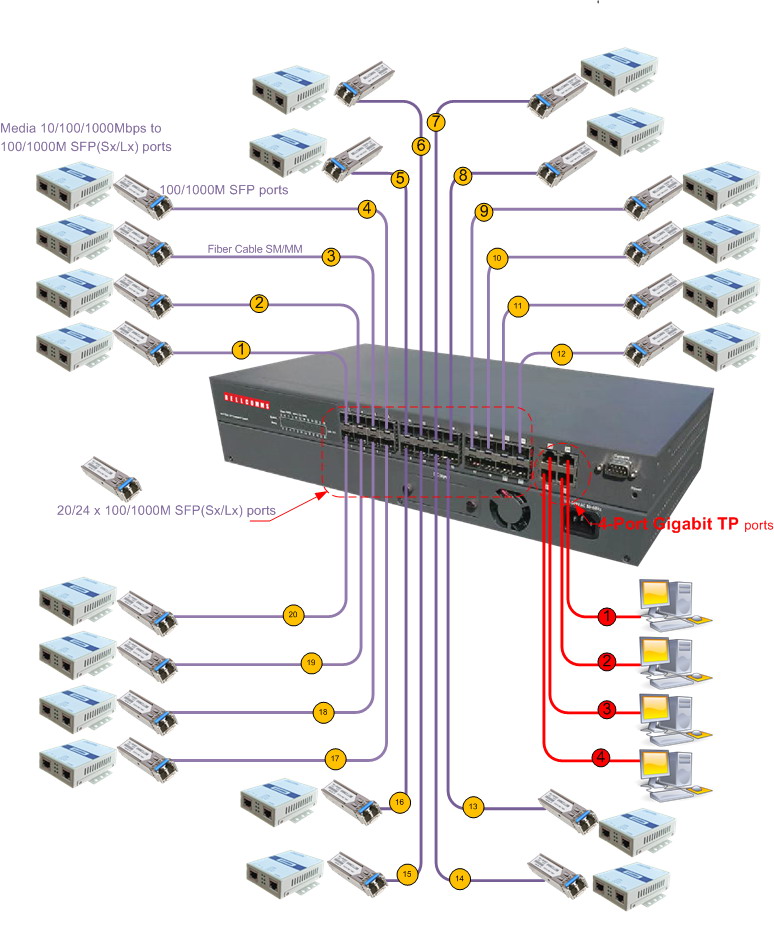

-20 * SFP ports, support 100Base FX or 1000Base-X
-4* RJ45/SFP(100/1G) ports, auto-detect RJ45/SFP connection
-IPv6 management
-IPv4 Static routing
-8 priority queues are supported on each port for QoS application
-Port-based VLAN, 802.1Q VLAN, Voice VLAN and Q-in-Q(double tagging) function
-Protected Port and LoopBack Detection function
-IEEE 802.1x security function, and VLAN assignment, Guest VLAN functions
-Static Mac address access limit and Dynamic Mac address number on port

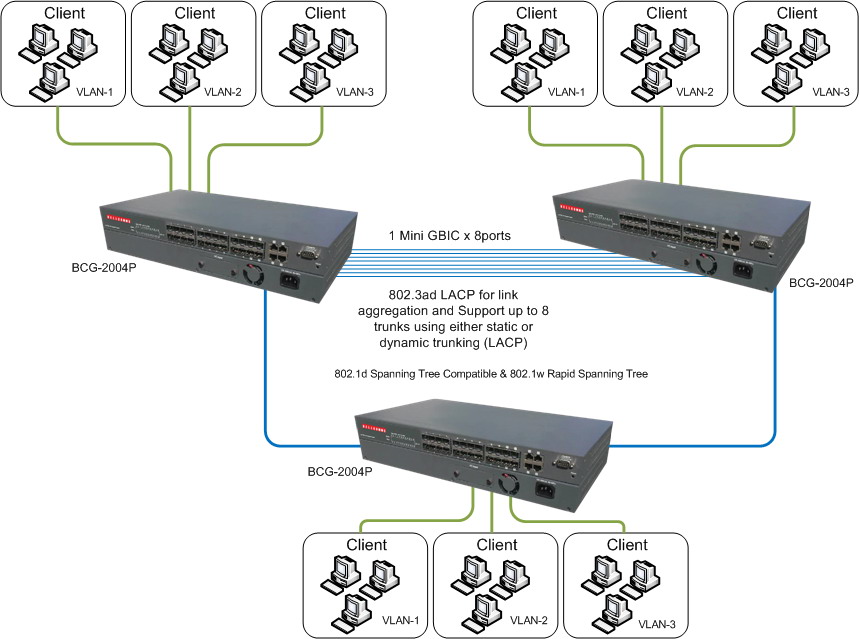

-IEEE802.1d & 802.1w & 802.1s
-IP Multicast with IGMP snooping / query / fast leave / filtering /group limited /MVR
-DHCP Client / DHCP Option 82 Relay / DHCP Snooping function
-ACL function for L2 ~ L4 packet control, Ingress/Egress rate control on port
-Broadcast/Multicast/Unicast storm control
-ARP inspection / IP source guard
-RMON 1,2,3,9
-SFP Transceiver DDMI function
-Remote port configuration setting and statistics monitoring
-Text configuration download and upload
....................................

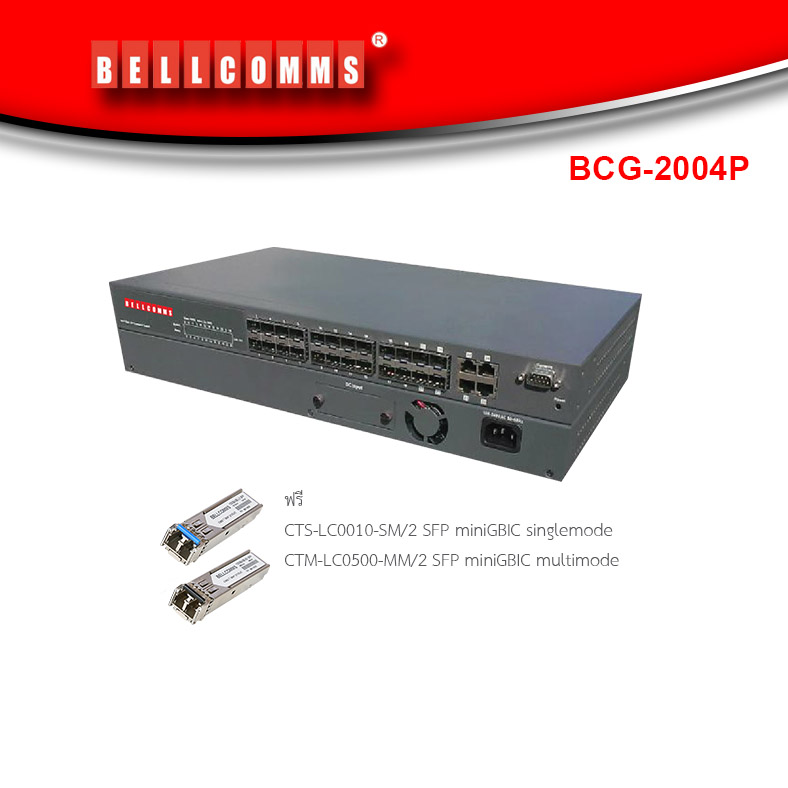

ราคาแนะนำ 12,900 บาท [BCG-2004P]
ฟรี
CTS-LC0010-SM/2 SFP miniGBIC singlemode
CTM-LC0500-MM/2 SFP miniGBIC multimode
