จุดเด่น
...................................................................................................
-ใช้ฝาครอบเข้าหัวได้โดยไม่ต้องใช้เครื่องมือเข้าหัว
-ฝาครอบแบบยึดติดกับตัวกันการสูญหาย
-ฝาครอบยึดติดกับตัวป้องกัน การหลุดของสายหลังเข้าหัว
-ใช้ได้กับหน้ากาก Keystone Style ทุก Brand.
...................................................................................................

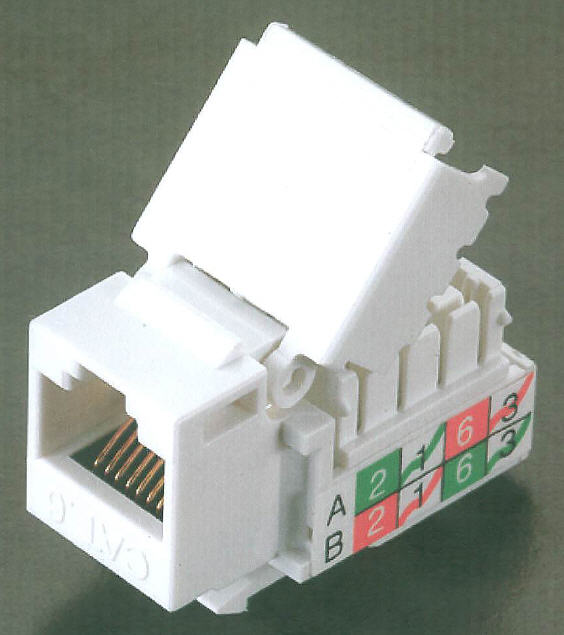

Cat6 Tool-less Modular Keystone Jack Low attention.
Specification The Bellcomms range of products are the next generation of data communications solutions. Low attention loss with new inovation prouduce technology , improving consistency in performance, and exactly matching the work-area outlets. These modular jacks are colour coded for both 568A and 568B standards and can be terminated using a Krone or 110 style tool. Clear wire retaining caps are supplied and can be used to provide additional cable strain relief.
.......................................................................................................................
PRODUCT FEATURES• Fully compliant to AS/NZS 3080:2003, ISO/IEC 1801 Edition 2 2002 and ANSI/TIA/EIA-568-B.Series Connecting Hardware Standards. • Backward compatible with Category 5 and 5e products. • Flexible locking with all Keystone style Wall plate• Convenient with termination them with Tool-less cover.• Tool-less cap proteted with slide-out Cable form IDC hold, after temiation.• UL 94V-O rated. • Accepts solid 22-24 AWG diameter conductors. COLOURS White electric (WE), Black (BK), Soft Grey (SG), Green (GR), Red (RD), Yellow (YL) & Blue (BU)
...................................................................................................
Part No CAT6-00103
